GN Size Upright Refrigerator and Freezer立式冷藏＆冷冻柜

*详情参数请向左滑动

TECHNICAL PARAMETER

参数及产品特色

Model 型号	ExteriorDimensions （W×D×H）(mm) 外部尺寸（mm）	InternalDimensions（W×D×H）(mm) 内部尺寸（mm）	Capacity (Litresor-GN-Pans)  内容积（L）	Power (W) 输入功率（W）	Temperature Range (℃) 温度范围（℃）	Enviromental Temperature(℃) 环境温度（℃）	Mode of Refrigeration 制冷方式
AUGC-585	730×810×2050	590×680×1442	580	320	-2～＋2	43℃	Ventilated
AUGF-585	730×810×2050	590×680×1442	580	645	-18～-22	43℃	Ventilated
AUGC-1275	1440×810×2050	1300×680×1442	1270	450	-2～＋2	43℃	Ventilated
AUGF-1275	1440×810×2050	1300×680×1442	1270	850	-18～-22	43℃	Ventilated

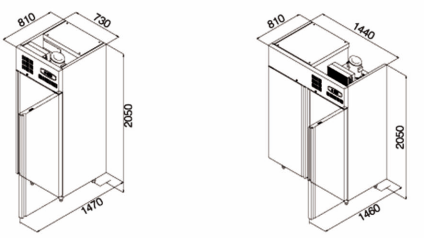

DIMENSION

产品尺寸

     AUGC/F-585                                                 AUGC/F-1275

Features

304# stainless steel interior and exterior

Hot gas defrost system, energy saving. The fluctuation of temperature is small in inner cabinet. Integrated door handle, it is very firm and exquisite.

The rounded door design without jutting edges. Radius internal corners without welding and rust for easy cleaning.

Hinge door can remain open at more than 90°for easy loading and unloading. The doors will close when turned to an angle of less than 90°.

Removable door frame for easy changing the heating wire. Compressor and condenser can be removable for easy maintenance. SCM digital temperature controller and display

Mounted on Stainless Steel feet

Track supports can be removable without any tools for easy cleaning. Unique frame edge heat insulation design for energy saving.

产品特点

内箱和外箱为高品质304不锈钢，在强度高、抗腐蚀、耐湿气等性能上都有卓越表现。热融化霜并辅助电加热，融霜周期短，节约能源；箱内温度波动小。

圆弧门，一体化拉伸门把手，牢固，美观大方。

内箱底部为独特的135°卫Th拼角，无焊接，不Th锈，方便清洁。

回归门铰链，门可以打开超过90°角，方便存取食物，小于90°角时，门可自动回归。柜口框可自由拆卸，方便更换门框发热丝。

机组可整体拆卸及安装，方便维修。

SCM微电脑数字温控器，温度显示准确。可调子弹脚

无需工具，可随意拆、装搁物架挂条，方便清洁。独特的断冷桥设计，省电，美观。

Options

Additional shelves or pans Half doors

Castors

可选择

搁物架或者份数盆半门

脚轮
